市場調査レポート
商品コード
1297864

中国の乗用車用HUD産業チェーンの発展（2023年）

China Passenger Car HUD Industry Chain Development Research Report, 2023
出版日: | 発行: ResearchInChina | ページ情報: 英文 200 Pages | 納期: 即日から翌営業日

価格
価格表記: USDを日本円(税抜)に換算
本日の銀行送金レート: 1USD=156.76円
中国の乗用車用HUD産業チェーンの発展（2023年）
出版日: 2023年06月08日
発行: ResearchInChina
ページ情報: 英文 200 Pages
納期: 即日から翌営業日
  • 全表示
  • 概要
  • 目次
概要

当レポートでは、中国の乗用車用HUD産業チェーンについて調査分析し、HUD技術、主なコンポーネント、サプライヤーなどの情報を提供しています。

目次

第1章 HUD業界の概要

  • HUD業界の概要
    • HUDの発展の背景
    • HUDの差別化競合においてインテリジェンスが焦点となる
    • HUDの分類と比較
  • HUDの技術原理
    • 自動車用HUDイメージングの原理と主な要件
    • HUDの主な技術とその変遷
    • HUDのプロジェクションイメージング技術へのイントロダクション
    • 主流のプロジェクションイメージング技術の比較
    • 主流のプロジェクション技術間の光学コンポーネントの比較
    • HUD製造に対する現在の技術的障壁
  • HUDの主要コンポーネント
    • HUDの主要コンポーネント - 画像のソース
    • HUDの主要コンポーネント - 光学ディスプレイ
    • HUDの主要コンポーネント - その他のハードウェア
  • HUD市場の現状
    • 中国のHUDの市場規模
    • 競合情勢
    • ビジネスモデル
    • HUD産業チェーン
    • HUD産業チェーンの上流、中流、下流のメーカー
    • HUD産業チェーンにおける代表的な企業

第2章 PGUモジュールのサプライヤー

  • Summary of Optical Device Suppliers
  • Kyocera
  • BOE
  • Tianma Microelectronics
  • iView Displays
  • Goertek
  • Zhejiang Crystal-Optech
  • ASU Tech
  • Huawei
  • AR-HUD
  • Raythink
  • Summary of Chip Vendors
  • TI
  • Himax Technologies
  • Nanjing Smartvision
  • Huixinchen
  • Microvision
  • Summary of Light Source Suppliers
  • Nichia
  • ams OSRAM
  • Jufei Electronics

第3章 フロントガラスのサプライヤー

  • Summary of Windshield Suppliers
  • Fuyao Glass
  • AGC
  • Saint-Gobain
  • Summary of Wedge Film Suppliers
  • Sekisui Chemical
  • Eastman

第4章 光学ミラーのサプライヤー

  • Freeform Mirror Suppliers
  • Sunny Optical Technology
  • Fran Optics
  • Optical Waveguide Suppliers
  • Lochn Optics
  • Tripole Optoelectronics
  • SVG Tech Group
  • DigiLens

第5章 HUD市場の動向と予測

  • HUDの開発動向
  • AR-HUDの開発動向
  • PGUコンポーネントの開発動向
  • 光学ミラーコンポーネントの開発動向
目次
Product Code: WWJ006

Research on HUD industry chain: new technologies such as LBS and optical waveguide help AR-HUD become a "standard configuration".

As HUD technology advances, AR-HUD, which can combine virtual information and real road scenes in the form of images, is favored by automakers. With maturing technology and declining cost, HUD has begun to penetrate into low-price vehicle models, and will become a "standard configuration" for smart cars in the future. For example, Changan Deepal S7, a model unveiled in early March 2023 with starting price of RMB169,900, cancels the dashboard and uses a 53-inch holographic AR-HUD system instead. The AR-HUD supplier is Zhejiang Crystal-Optech.

The AR-HUD industry chain covers suppliers of picture generation units (PGU), optical mirrors, glass, software and other components. Among them, the PGU plays the most crucial part at the upstream end, making up 50% of the total cost of HUD, and the optical mirror follows, taking a 20% share. The lower cost of the two major components, namely PGU and optical mirror, means a reduction in the total cost of AR-HUD, bringing an extremely fast progress in the implementation of AR-HUD. Therefore the new technologies related to the two components have developed rapidly in recent years.

Emerging projection technologies such as LCoS and LBS are capturing market shares.

PGU is used to generate pictures and control brightness. At present, the most mature PGU technology path for AR HUD is DLP, a high-cost technology monopolized by TI. Yet Chinese suppliers conduct in-depth research on emerging projection technologies like LCoS and LBS, aiming to seize the initiative and overtake on the bend.

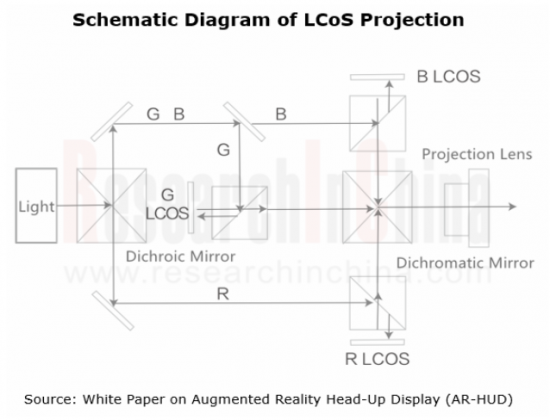

LCoS technology uses the LCoS panel to modulate the optical signal emitted by the light source and projected to the screen, but the light emitted will not penetrate the reflective LCoS panel. LCoS offers the following benefits: 1. High light use efficiency, up to 40% or higher; 2. High resolution, up to 4k or even 8k, and wide color gamut; 3. Low cost after the process matures.

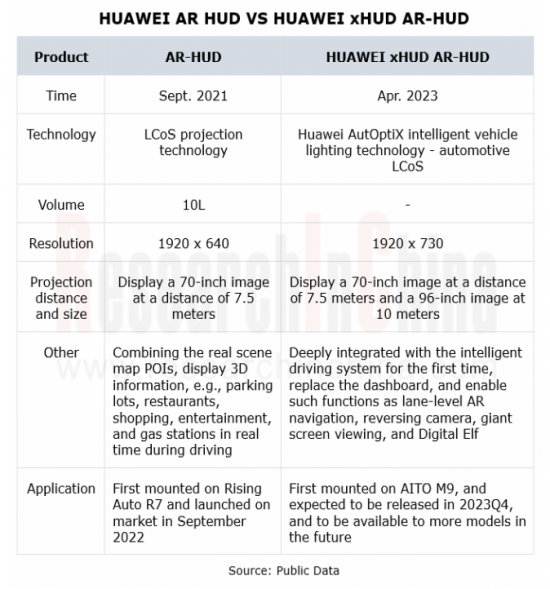

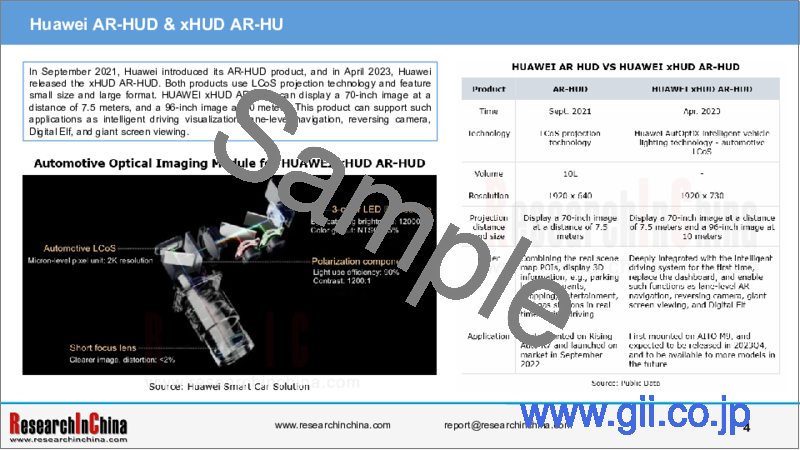

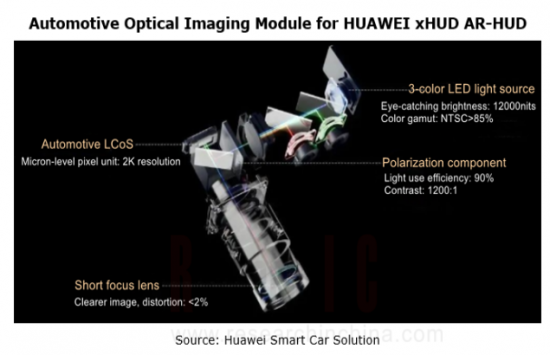

In September 2021, Huawei introduced its AR-HUD product, and in April 2023, Huawei released the xHUD AR-HUD. Both products use LCoS projection technology and feature small size and large format. HUAWEI xHUD AR-HUD can display a 70-inch image at a distance of 7.5 meters, and a 96-inch image at 10 meters. This product can support such applications as intelligent driving visualization, lane-level navigation, reversing camera, Digital Elf, and giant screen viewing.


LBS, a laser scanning and projection technology, uses lasers as the light source, and realizes projection via a MEMS micro-mirror. It offers the following benefits: 1. Greatly simplified optical engine, and small size; 2. High contrast, easily up to 7000:1; 3. High brightness and wide color gamut (>150%); 4. Low power consumption (<4-6W), and low heat generation. Nevertheless, for the temperature-sensitive laser diodes fall short of the working requirements of 85°C, LBS has yet to be mature enough to be applied.

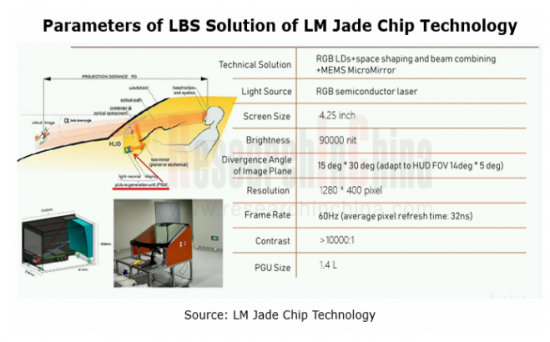

Founded in 2021, LM Jade Chip Technology is a Chinese company engaged in development and industrial application of MEMS chips and laser scanning micro-display modules. For AR-HUD, it has developed a complete LBS-based solution LM-PGU-1000 and provided to its partners such as Sunny Optical Technology, OFILM and Aptiv. LM-PGU-1000 has the following features: 1. A solution to display speckle, speckle contrast: <4%; 2. Higher horizontal resolution and larger horizontal FOV; 3. Lower power consumption and higher brightness; 4. Higher contrast.

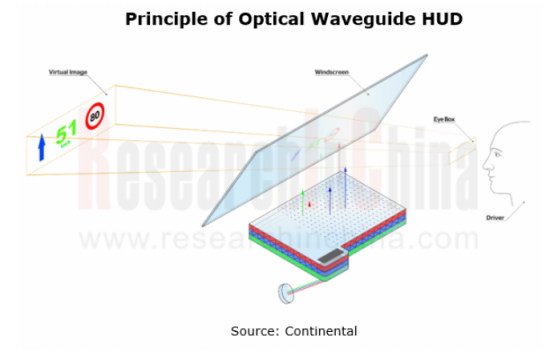

Waveguide technology will become the ultimate optical display solution.

Too large installation size and fairly high cost of AR HUD are currently the sore points for the industry. The waveguide technology allows for removal of the mechanical and optical mechanisms inside conventional HUDs, which means the first two reflections are omitted so that the information from the light source is directly projected onto the windshield. AR HUD occupies space one tenth of conventional mechanical solutions. In addition, the optical waveguide solution delivers high light transmittance, large FOV, and good display effect.

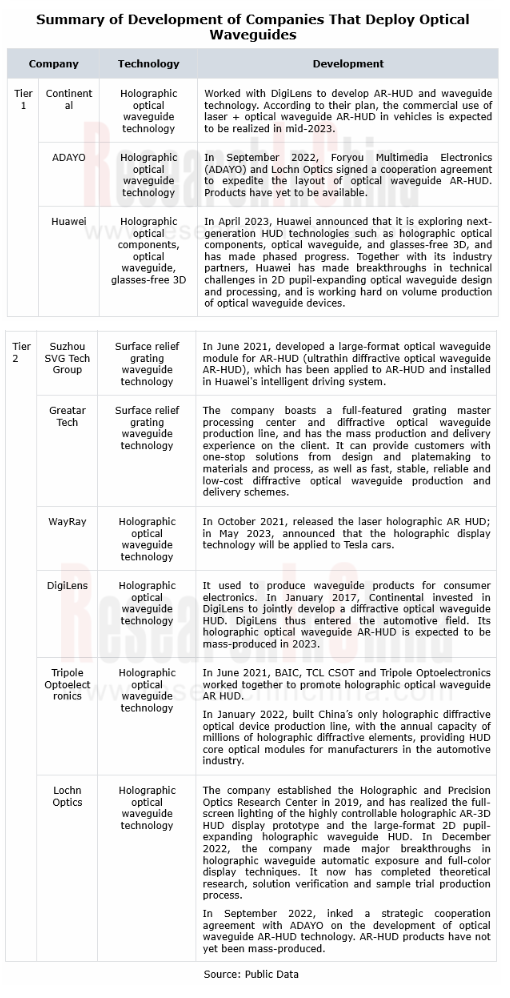

Optical waveguide falls into geometric optical waveguide and diffractive optical waveguide. Wherein, the diffractive optical waveguide technology is the key development direction of AR-HUD, and is divided into surface relief grating waveguide and volume holographic grating waveguide.

Surface relief grating waveguide, a mature technology often seen in AR near-eye display devices, provides thinness, large field of view, and large eye movement range. At present, it is a mainstream optical waveguide solution for AR-HUD, and manufacturers such as Suzhou SVG Tech Group and Greatar Tech are all making layout of it.

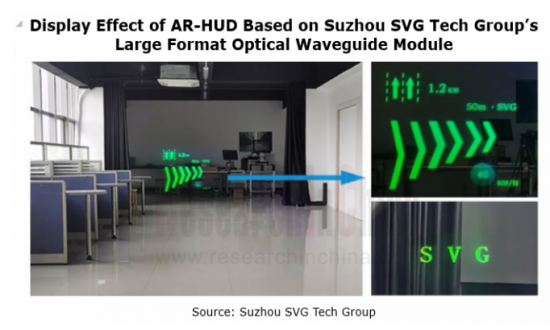

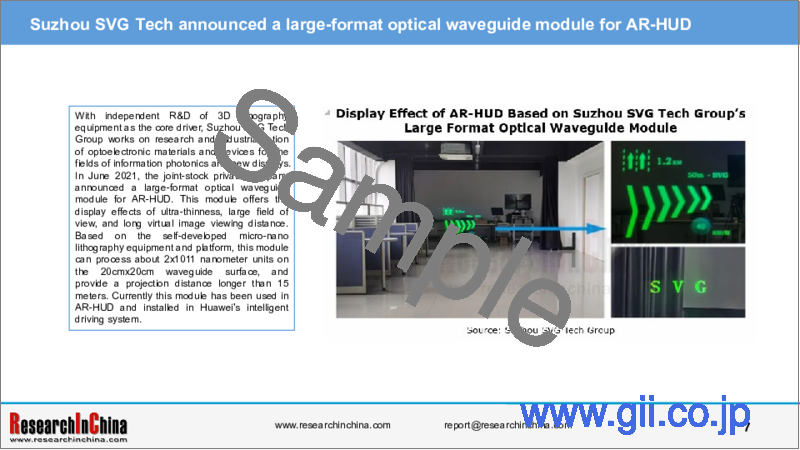

With independent R&D of 3D lithography equipment as the core driver, Suzhou SVG Tech Group works on research and industrialization of optoelectronic materials and devices for the fields of information photonics and new displays. In June 2021, the joint-stock private company announced a large-format optical waveguide module for AR-HUD. This module offers the display effects of ultra-thinness, large field of view, and long virtual image viewing distance. Based on the self-developed micro-nano lithography equipment and platform, this module can process about 2x1011 nanometer units on the 20cmx20cm waveguide surface, and provide a projection distance longer than 15 meters. Currently this module has been used in AR-HUD and installed in Huawei's intelligent driving system.

The volume holographic grating waveguide can reduce the volume of AR-HUD to one fifth to one tenth of the conventional geometric optics ones. Compared with reflector-type AR-HUD with a volume of 22L, the holographic optical waveguide enables a volume of only 2.4L; the main imaging module can also standardized and mass-produced at low cost. Such AR-HUD is promising. However the production process is complicated, and currently few manufacturers have the ability to produce in quantities. It is in 2023 that the application of corresponding AR-HUD products will start.

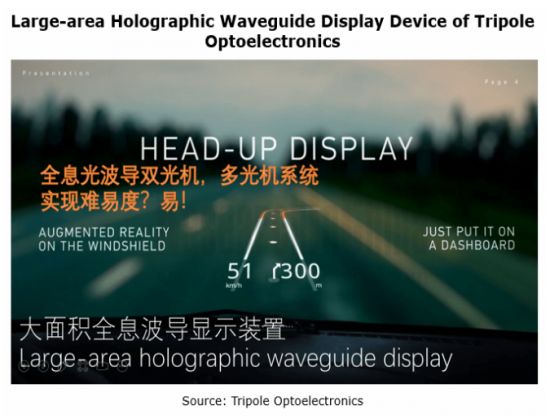

Tripole Optoelectronics began to deploy volume holographic diffractive optical waveguide technology in 2019. In June 2021, Tripole Optoelectronics worked with BAIC and TCL CSOT to promote holographic optical waveguide AR-HUD. In January 2022, the company built a holographic diffractive optical device production line with the annual capacity of millions of holographic diffractive elements, providing large-area holographic optical waveguide AR-HUD products for manufacturers in automotive industry.
