酸化物系全固体電池の技術動向と市場見通し

全固体電池全体の市場規模は、2030年に149GWh、2035年に950GWhに成長し、電池市場全体の10パーセントを占めると予測されています。中でも酸化物固体電解質を用いた全固体電池は、大型のバルク型と小型の薄膜型、ラミネート型に分けられます。バルク型はxEV向けの開発が予測されていますが、実用化には技術の障壁が高いため、現時点ではWeLionのようなハイブリッド電池や準固体電池としての利用が見込まれており、2030年の約27GWhから2035年までに約87GWhに成長すると予測されています。

下の表は、現在商品化されている、あるいは準備中の酸化物固体電解質を利用した電池のメーカーと仕様をまとめたものです。ほとんどがMLCC技術に強い日本企業によって商品化されたものです。

一方、酸化物系固体電解質を利用した電池をxEVに採用する試みも最近行われており、中国のWeLionはガーネットとNASICON型酸化物を用いたハイブリッド電池を開発し、安全性試験をクリアし、NIOの150kWh電池パックに採用されると報告されています。WeLionは現在、2GWhの容量を持つ大規模製造ラインを建設中です。

当レポートでは、酸化物系全固体電池市場について調査し、無機固体電解質の概要と技術や、酸化物固体電解質の主な課題とその解決に向けた研究開発状況を詳細にまとめています。また、酸化物電池を商品化している企業の最新動向と製造プロセスや、重要な特許についての情報も提供しています。

当レポートの特長

酸化物系固体電解質に関する技術的に充実したコンテンツ

• 1. 酸化物系固体電解質の研究開発状況、主な課題、ソリューション
• 2. 酸化物系固体電解質の製造プロセス技術
• 3. 酸化物系電解質産業における主要企業の動向と技術
• 4. 酸化物系固体電解質の市場見通し
• 5. 酸化物系固体電解質に関連する主要企業の特許の分析

The performance of lithium-ion batteries (LIBs) has improved dramatically, especially in energy density, due to continuous technology development driven by the explosive demand for new electronics and electric vehicles. However, high energy density also poses the risk of fire or explosion, and explosive reactions can occur due to mechanical damage, over-discharge, electrical faults from overcharging, internal overheating, and secondary heat dissipation caused by external factors.

To prevent these risks, solid-state batteries are emerging as the next-generation battery technology that uses solid-state electrolytes. Solid-state batteries have the advantages of excellent safety, high energy density, high power output, and wide operating temperature range, and are free from the risk of explosion, while solid-state electrolytes have better ionic conductivity than liquid electrolytes at low temperatures below 0°C and high temperatures between 60~100°C.

Solid-state electrolytes, the most essential part of a solid-state battery, are divided into polymer-based and ceramic-based electrolytes, and ceramic-based electrolytes are further categorized into sulfide-based and oxide-based electrolytes. This report will discuss oxide-based solid-state electrolytes among ceramic-based solid-state electrolytes.

The full-scale development of oxide-based solid electrolytes began with the development of LiPON in 1992, which has the advantages of stable contact with lithium metal, a wide electrochemical window (0-5.5 V vs. Li/Li+), and negligible electrical conductivity. Therefore, LiPON was widely used as a reference electrolyte in the R&D of thin-film solid-state lithium batteries. However, it was only suitable for use as a thin-film electrolyte due to its low ionic conductivity (about 10-6 S/cm at 25°C) and was too fragile for application to large-scale batteries.

In 1993, perovskite-type LLTO (Li0.5La0.5TiO3) was developed, showing an ionic conductivity of over 2x10-5 S/cm, and in 1997, NASICON-type inorganic solid electrolytes including LAGP (Li1+xAlxGe2-x(PO4)3) and LATP (Li1+xAlxTi2-x(PO4)3) were first developed, showing high ionic conductivities of 10-4 S/cm and 1.3x10-3 S/cm, respectively. In 2007, a garnet-type ionic conductor LLZO (Li7La3Zr2O12) was first reported, which exhibited an excellent ionic conductivity of 3x10-4 S/cm at room temperature and excellent thermal and chemical stability, showing potential for application in solid-state lithium batteries.

Solid-state batteries with oxide solid electrolytes are still used as low-capacity power sources for IoT and small electronic devices because they need to be sintered at high temperatures, have low ionic conductivity, and are difficult to scale up, and the method using multilayer ceramic capacitor (MLCC) manufacturing technology is widely used.

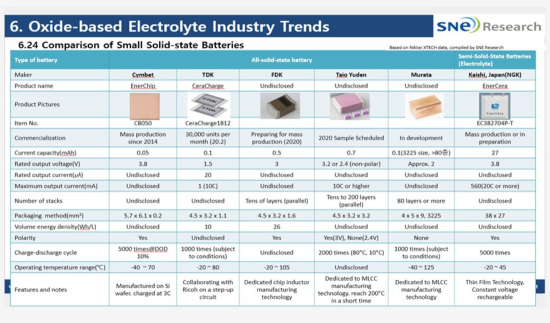

The table below summarizes the manufacturers and specifications of cells with oxide-based solid electrolytes that are currently commercialized and in preparation. Most of them are commercialized by Japanese companies, which are strong in MLCC technology.

Meanwhile, attempts to use batteries with oxide-based solid electrolytes for xEVs have also been made recently, and WeLion, a Chinese company, has developed a hybrid battery using Garnet and NASICON-based oxides, which has passed safety tests and is reported to be used in the NIO 150kWh battery pack. WeLion is currently building a large-scale manufacturing line with a capacity of 2GWh.

The overall market outlook for solid-state batteries is expected to grow to 149 GWh in 2030 and 950 GWh in 2035, accounting for 10% of the total battery market. Among them, solid-state batteries with oxide solid electrolytes are divided into large bulk type and small thin-film and laminated types. The bulk type is expected to be developed for xEVs, but due to high technical barriers to commercialization, it is currently expected to be used as a hybrid or quasi solid battery like WeLion and is expected to grow from about 27 GWh in 2030 to about 87 GWh in 2035.

This report, in addition to dealing with the overall overview and technology of inorganic solid electrolytes, also summarizes the key issues related to oxide solid electrolytes and the research and development status for solving them in detail. It also covers the latest trends and manufacturing processes of companies that are commercializing oxide batteries, and finally conducts a survey and analysis of important patents. This report will be a great help to readers who want to know the status, technology flow, and market of oxide solid electrolytes and batteries that apply them.

Strong Points of this Report :

Technically rich content on oxide-based solid-state electrolytes:

• 1. Research and development status, major issues, and solutions for oxide-based solid-state electrolytes

• 2. Manufacturing process technology of oxide-based solid-state batteries

• 3. Trends and technologies of major players in the oxide-based electrolyte industry

• 4. Market outlook for oxide-based solid-state electrolytes

• 5. Patent analysis of major players related to oxide-based solid-state batteries
